Quick Details

  • Type: Plywoods
  • Place of Origin: Shandong, China (Mainland)
  • Brand Name: NEWSWAN
  • Model Number: NFFP-1103
  • Usage: Outdoor
  • Grade: First-Class
  • Main Material: Poplar
  • Formaldehyde Emission Standards: E2
  • Plywood Type: 15-Ply Boards
  • Color of Film: Black, Brown, Dark Brown, Red
  • Density of Film: 120G/M2, 135G/M2, 150G/M2, 180G/M2, 220G/M2, 240G/M2
  • Origin of Film: Imported, Domestic
  • Finish of Film: Mirror, High Glossy, Glossy, Matt, Wire-mesh, Anti-slip
  • Core: Poplar, Combi, Eucaplytus, Birch, Bamboo, mixed Hardwood
  • Glue Type: MR, E1, E2, Melamine, WBP
  • Thickness: 6-30mm
  • Size: 1220x2440mm, 1250x2500mm, 1200x800mm, 915X2135mm, etc.
  • Application: Construction, Formwork, Truck/Container Flooring, Packaging
  • Product name: Construction Timber Concrete Formwork Plywood / 18mm Marine Plywood

Packaging & Delivery

Packaging Details Construction Timber / Marine Plywood: Standard Exporting Pallet Packaging
Delivery Time Shipped in 20 days after payment

Related Products:







Product Description


Construction Timber 18mm Marine Plywood for Concrete Formwork



Product Name

Marine Plywood / Construction Formwork Plywood

Color of Film

Black, Brown, Dark Brown, Red

120G/M2, 135G/M2,150G/M2, 180G/M2, 220G/M2, 240G/M2

Finish of Film

Mirror, High Glossy, Glossy, Matt, Wire-Mesh, Anti-slip

Origin of Film

Imported, Domestic

Core

Poplar, Combi, Eucalyptus, Birch, Bamboo, Mixed Hardwood, Imported Hardwood

Glue Type

MR, E1, E2, Melamine, WBP, Phenolic WBP

Thickness

6mm, 9mm, 10mm, 12mm, 15mm, 16mm, 17mm, 18mm, 20mm, 21mm, 22mm, 25mm, 28mm, 30mm

Size

915x2135mm, 610x2440mm, 615x2500mm, 1200x1800mm, 1200x2400mm, 1200x1830mm, 1220x2440mm, 1250x2500mm,1500x3000mm, 2000x5200mm





Features & Technical Data for Shuttering Plywood / Construction Ply Wood

 Also Called Film Faced Plywood, Formwork, Marine Plywood

Board Density

>530KGS/M3(Poplar Core), >630KGS/M3(Combi Core)

>700KGS/M3(Birch Core), >700KGS/M3(Bamboo Core)

Tolerance of Thickness

+ / - 0.5mm

Tolerance of Length/Width

+ / - 2mm

Number of Layers

From 5 up to 21 depending on thickness

Edges Processing

By waterproof Acrylic Pain

Moisture

≤9%

Formaldehyde Emission Class

E1 (up to 8 mg per 100g of bone dry plywood)

Ultimate Shearing Strength

Not less than 1.5Mpa (Birch Core), not less than 1.0Mpa (Combi Core), not less than 0.7MPa(Poplar Core)

Abrasion

≤0.1G.100G

Impulsion

40KJ/M2

Modulus of Elasticity

≥5000 MPa

Bending Strength

≥40MPa

Warp Degree

≥1%

Expansion Rate of Thickness

≤8%

Time of Usage

≥5-20 Times (depends on quality grades)

Certification

ISO9001:2008, FSC, CARB, SGS, DIN68705-3, EN13986, EN636-3

Application

Construction, Truck/Container Flooring, Packaging

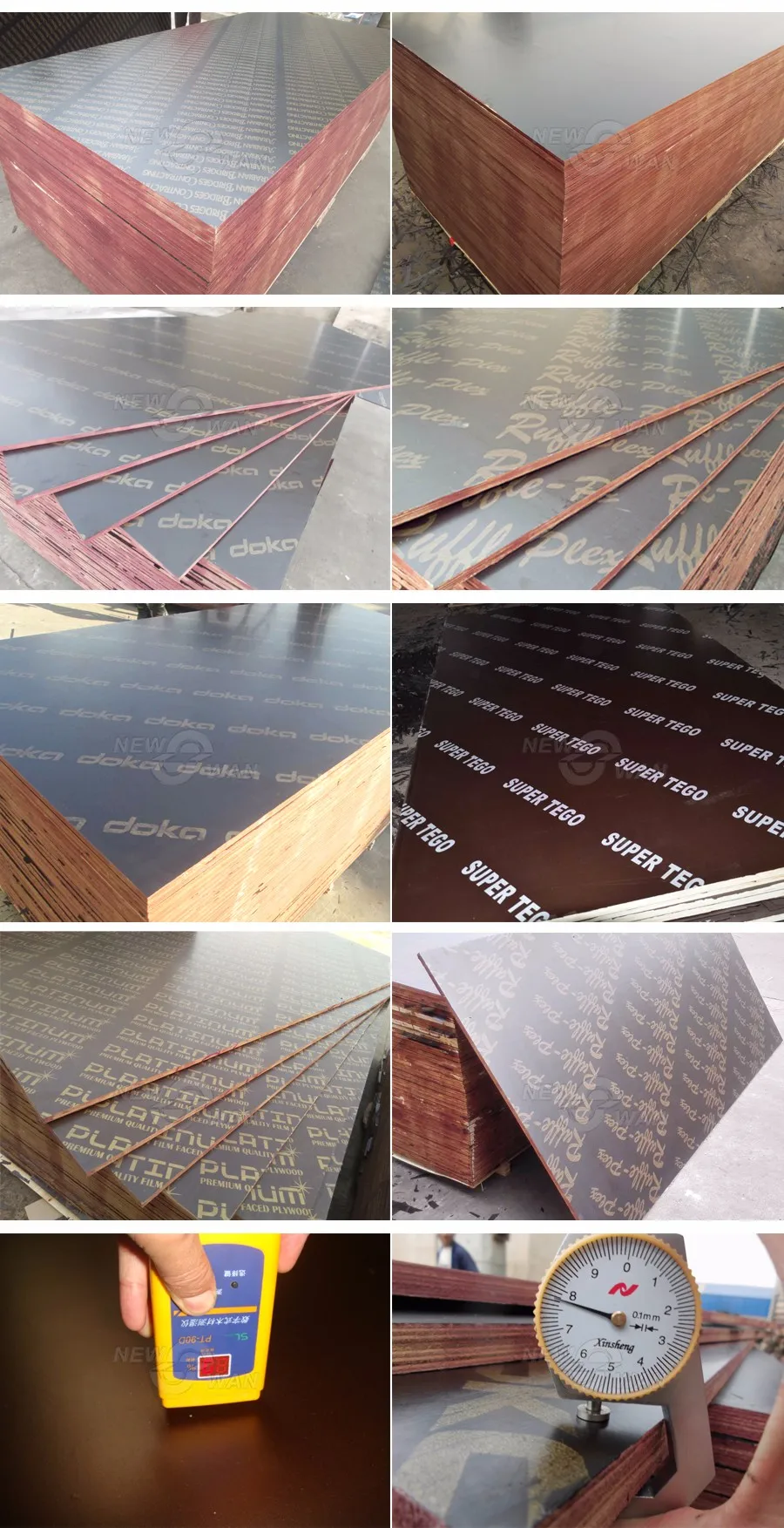

Black Film Faced Plywood / Brown Film Faced plywood / Shuttering Plywood
>     Brown Film Faced Plywood


>     Black Film Faced Plywood

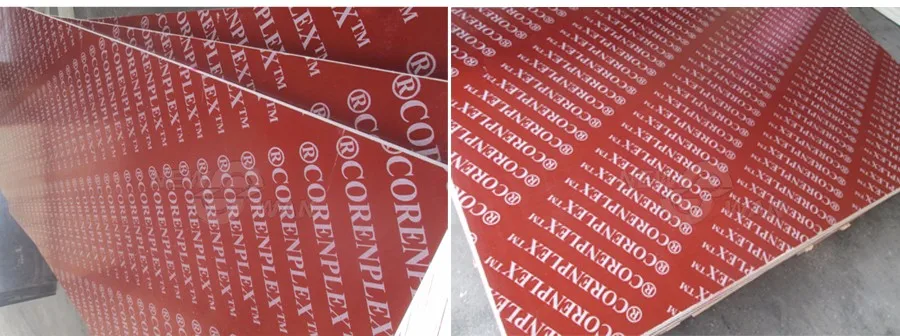

>     Red Film Faced Plywood

>     More Film Faced Plywood
(PVC Film Faced Plywood / Anti-Slip Film Faced Plywood / Bamboo Film Faced Plywood)

Quality Assurance



Packing&Loading

Application



About Us



FAQ

Sample:

1. Welcome to ask a free sample of film faced Plywood you want

    We will send you the sample as soon as possible

2. If you got any special inquiry, please just let us know

   We will try our best to march your inquiry

Product:
1. We can provide the Production report & Test Report as you required

2. High Productivity means we can march most customers inqiury, not only in quantity but also in the quality

3. Our production is support a Competitive Shipping company, who can supply a better service with lower price


Our Advantage:

1. Our Professional Manufacturer let us supply large amount high quality products with competitive price

2. Our High-Quality Team let our customer can get better service from us

2. We can provide a competitive After-sales service



We are specilaized in manufacturing timber products, including Wooden Doors, HDF/MDF Door Skin, Plywood door skin, etc,
with over 10 years experience.
Now we are exporting to Europe, Asia, Middle East, Africa, North America, as well as South America. We can supply you good
quality with the best prices from China.


 *Loading Quantity: 54 CBM per 40ft HQ in Pallet Packaging
*Minimum Ordering Quantity: 1X40ft HQ Container
*Shipping Date: 20 days after receiving the prepayment or L/C
*Payment Terms: T/T or L/C at sight
*Productivity/Capacity/Availability: 120,000 CBM per Year
